3D printed, minimal sanding required, no need to paint

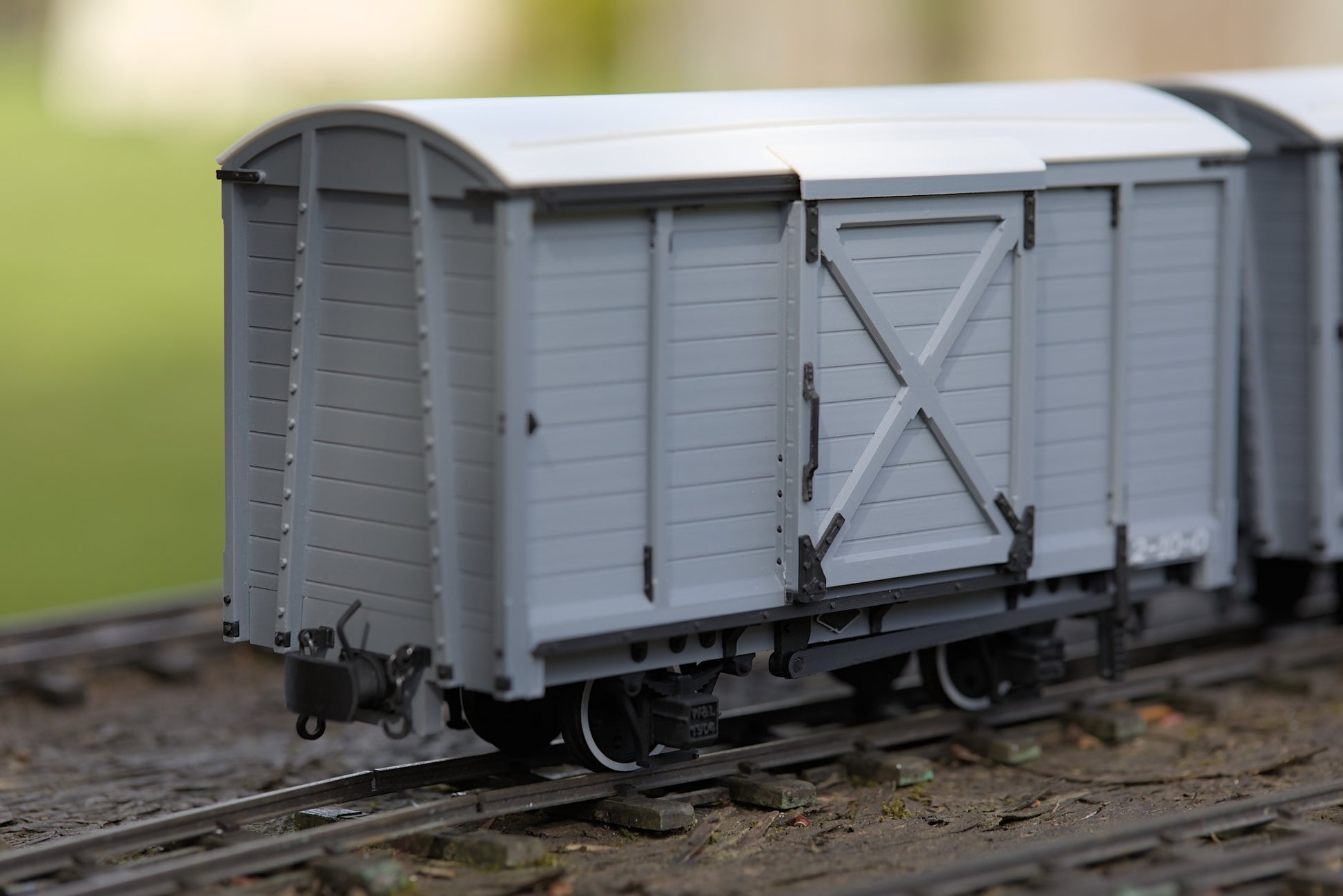

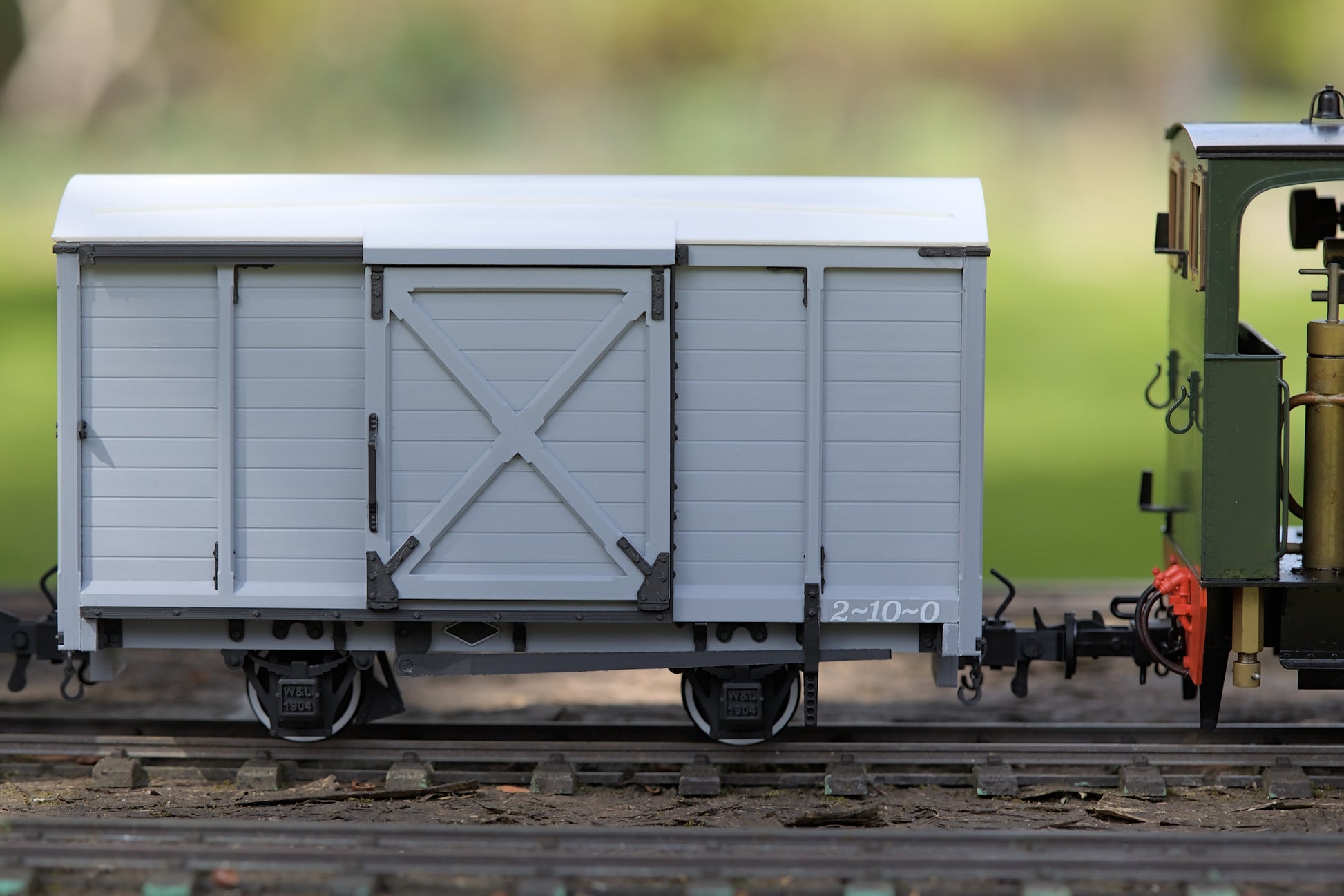

The four ton box van - sometimes called a covered or goods van was used all over the Welshpool and Llanfair railway. We've incorporated many improvements into this kit making it even easier to assemble. This kit comes with multiple transfers too, so you can choose which era to model, or leave them off for custom unbranded stock wagon.

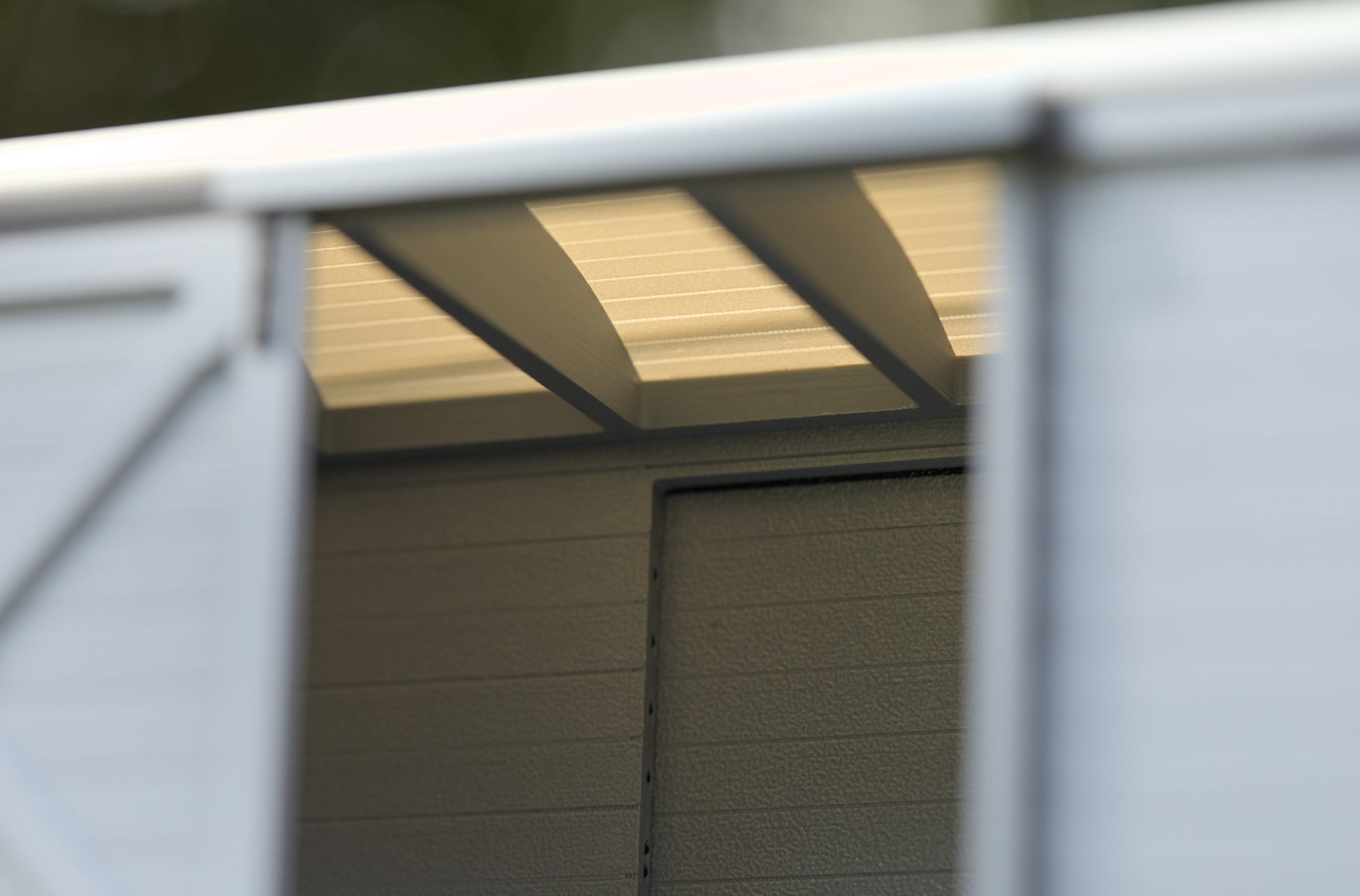

Pre-bent roof with exceptionally smooth finish and internal bracing/plank detail!

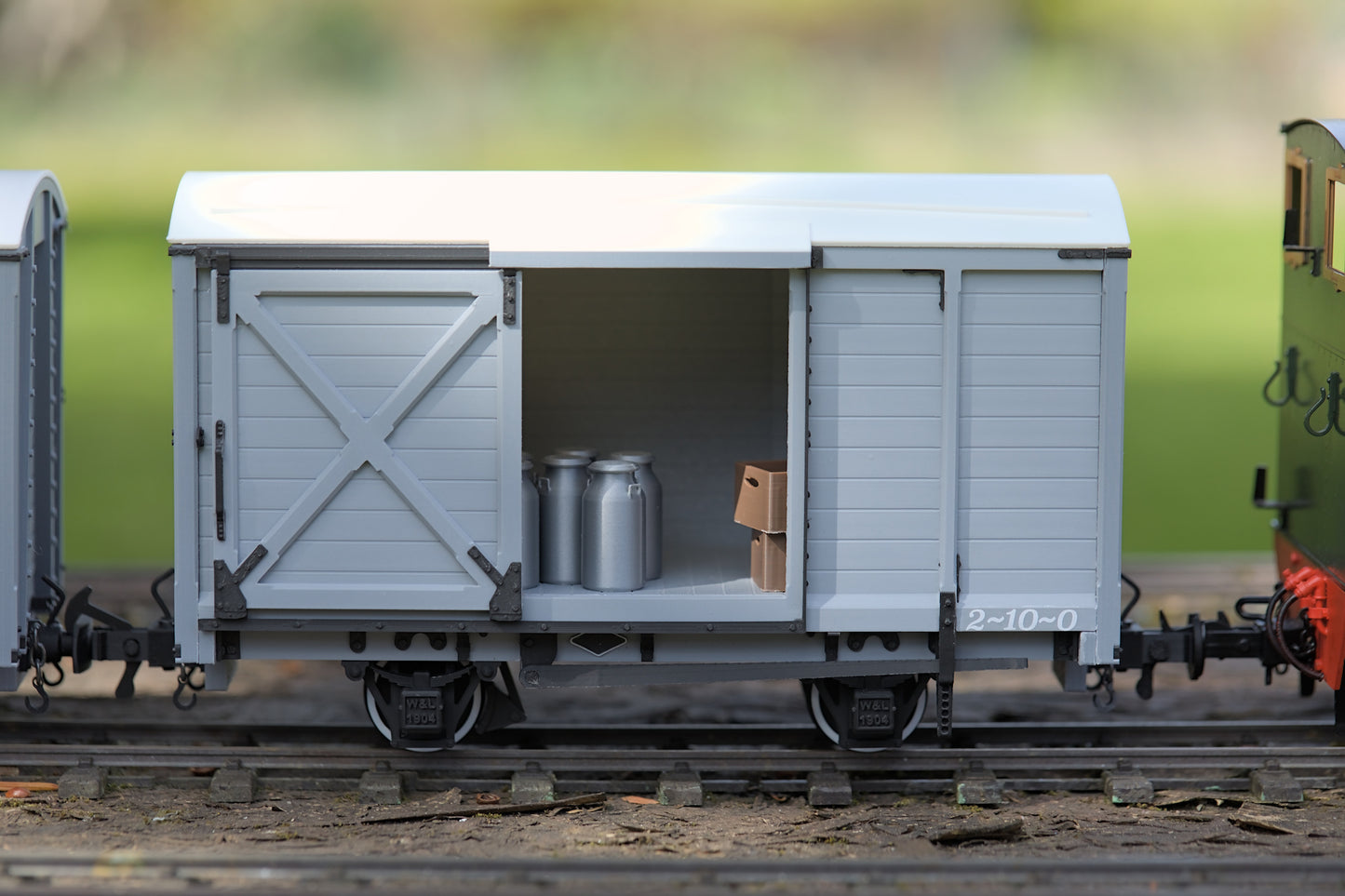

Our second kit in 16mm scale, this fantastic kit is very simple to build. It has opening doors and lots of detail. Insulated wheels adjustable between 32 and 45mm gauge. Manufactured by Pickerings for the Welshpool and Llanfair light railway, this superb kit is the perfect addition alongside our W&L Open Wagon kit.
Simple to build, extremely detailed, and no painting required!
3D printed in multiple colours to a very high standard, with an exceptionally high level of detail, this kit is a joy to build and even more fun to run.
Complete with extremely detailed instructions.
Made by us, in the UK 🇬🇧
Online only instructions
Specifications
- Scale: 16mm to 1 foot (1:19)
- Length over couplings (choppers): 300mm (12 inches)
- Length over couplings (dumb): 260mm (10.2 inches)
- Width: 105mm (4.125 inches)
- Height: 145mm (5.7 inches)
- Min Radius: 600mm (2 feet)
- Weight: approx. 450g
What's in the Kit?
Everything required to make one box van, including:

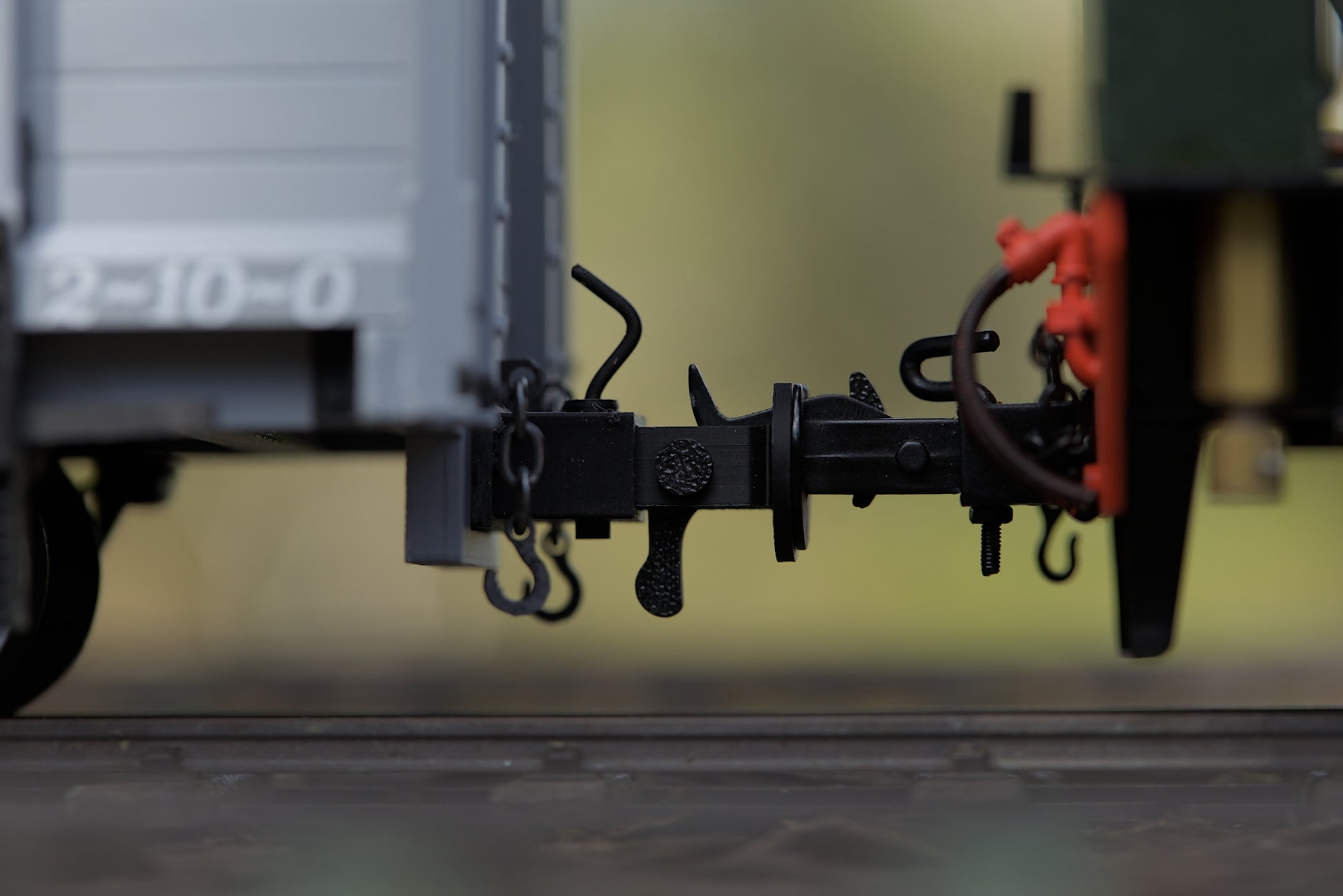

- Chopper couplings - one pair
- Dumb buffers - one pair
- Coupling hooks - one pair, brass
- Coupling chain - one, three link, steel

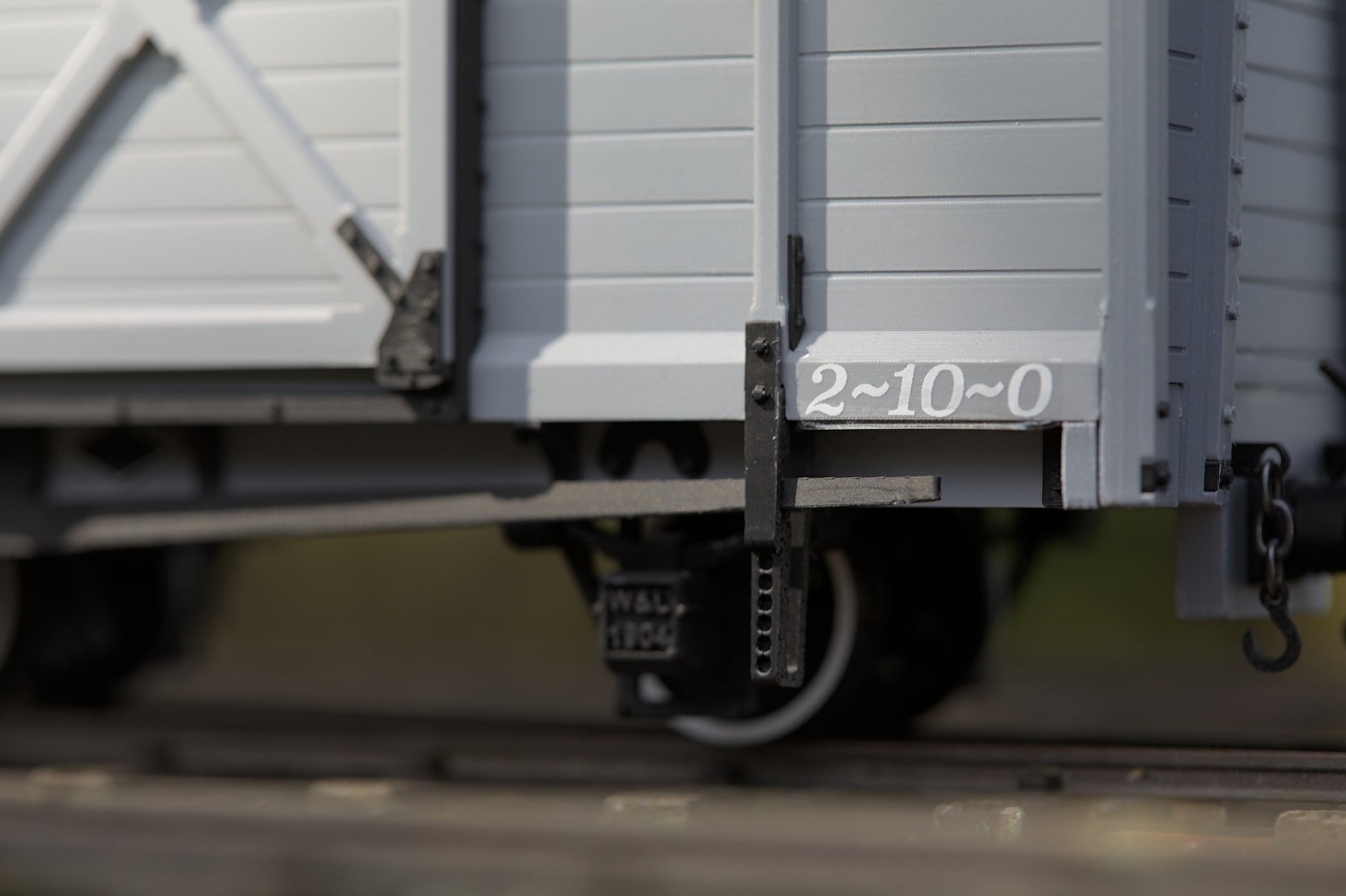

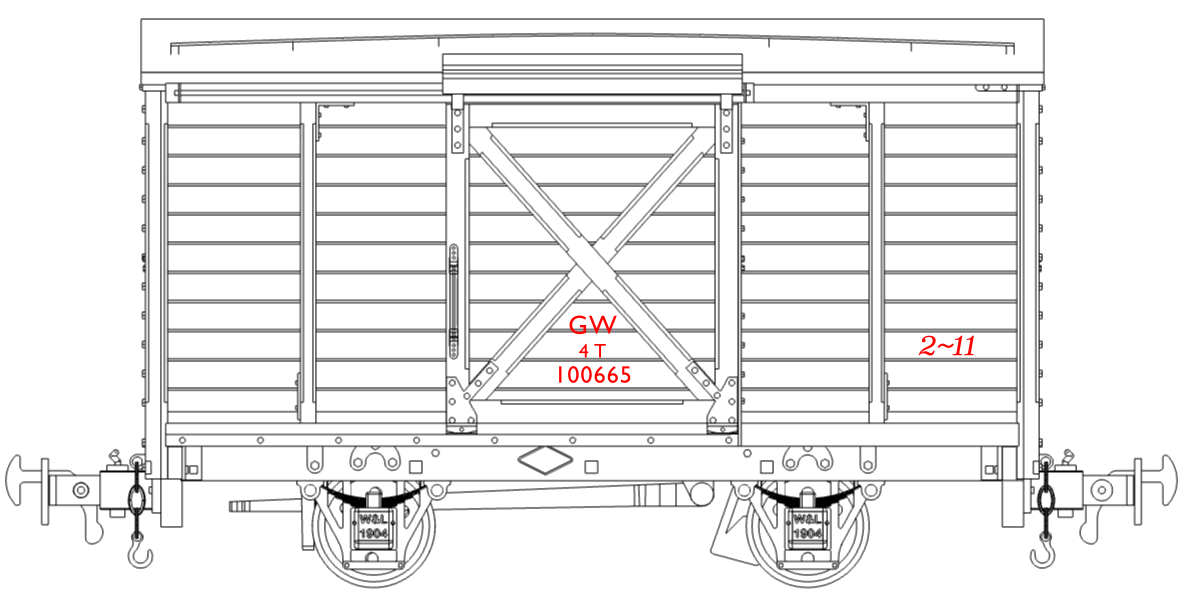

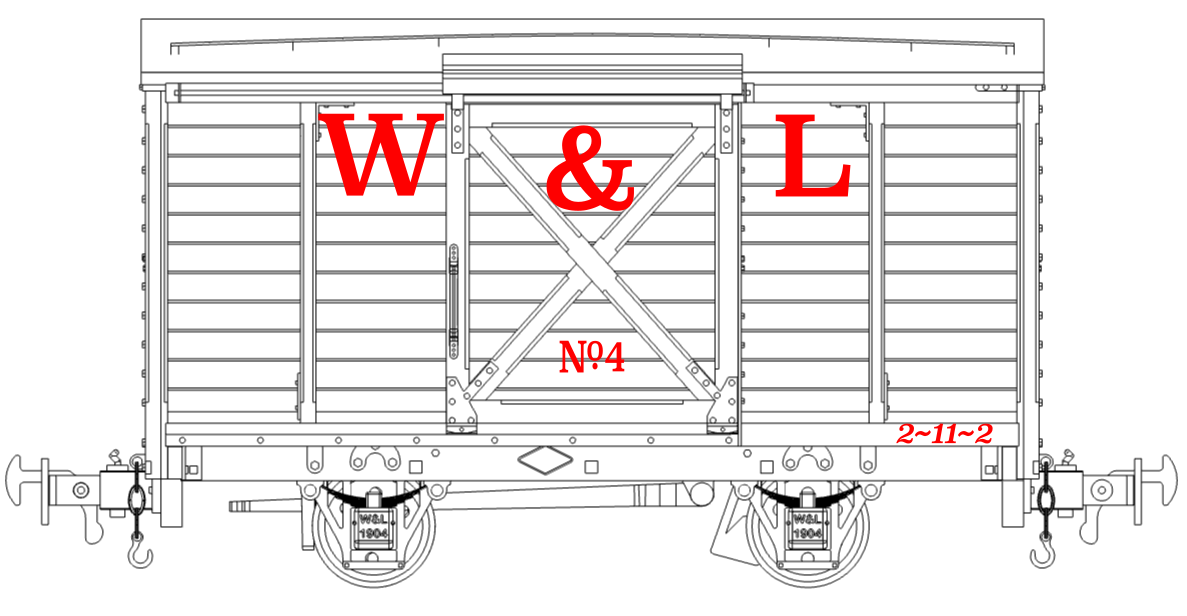

- Transfers - three different styles (+ spares!)
- Safety chains
- Wheels and axles
- Brake gear

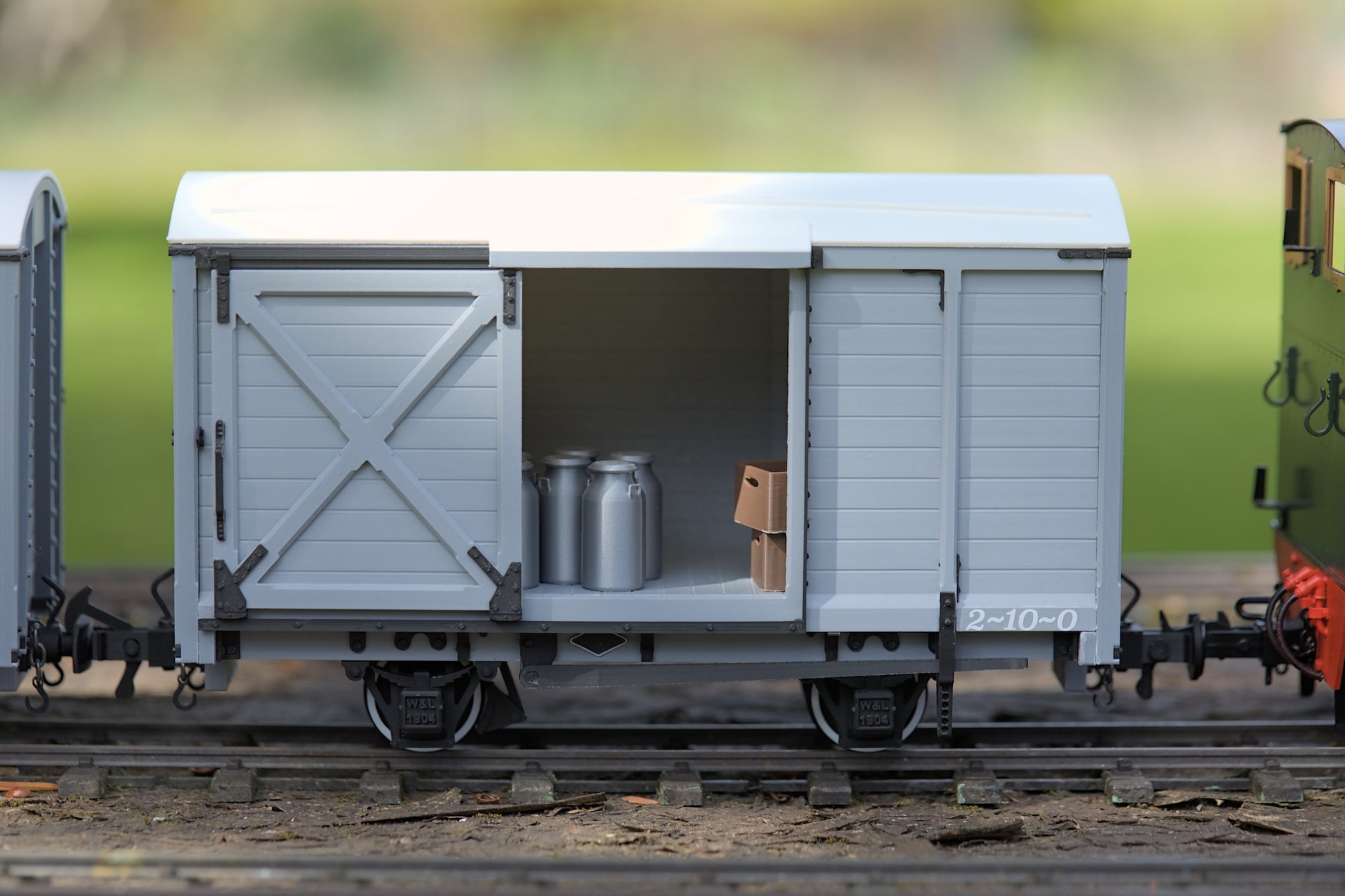

- Doors
- Pre-bent roof with plank detail
- Over 70 detailed parts
Materials
- Wheels: plastic
- Axles: stainless steel
- Bushes: brass
- Coupling hook: brass
- Coupling chain: steel
- Safety chain: steel
- Chassis: plastic
- Body: plastic
- Detail: plastic
Assembly
Assembly can be done in less than one hour. No painting is required, and it's not necessary to stick on lots of tiny little iron work or makers plates etc. For example, the solebars come with the detailed parts already fitted, the sides come with the all iron work attached and pre-coloured.
Download the detailed assembly instructions here.

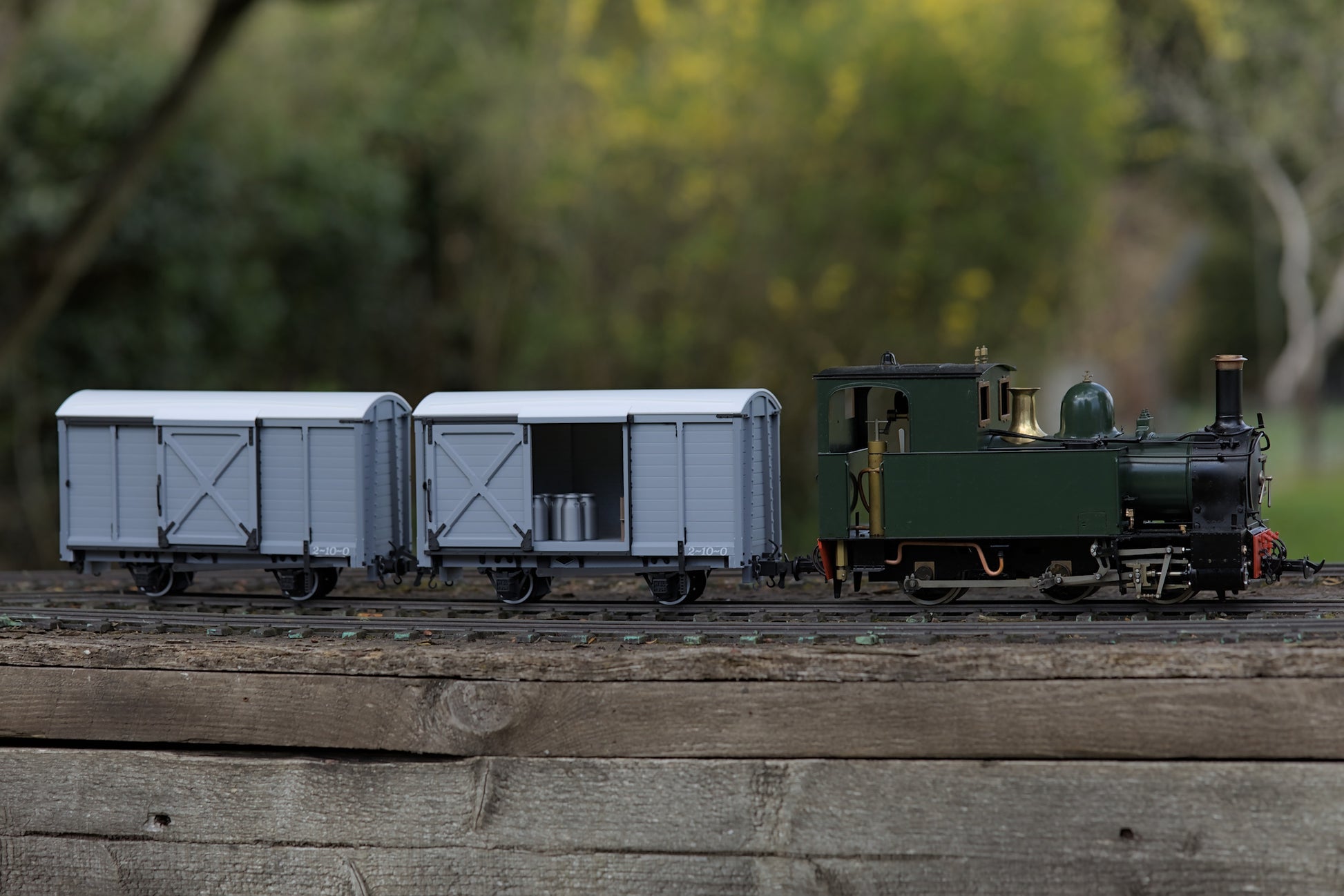

*Engine or contents not included
