16mm Welshpool and Llanfair Open Wagon

3D printed, minimal sanding required, no need to paint

Free postage on all kits!

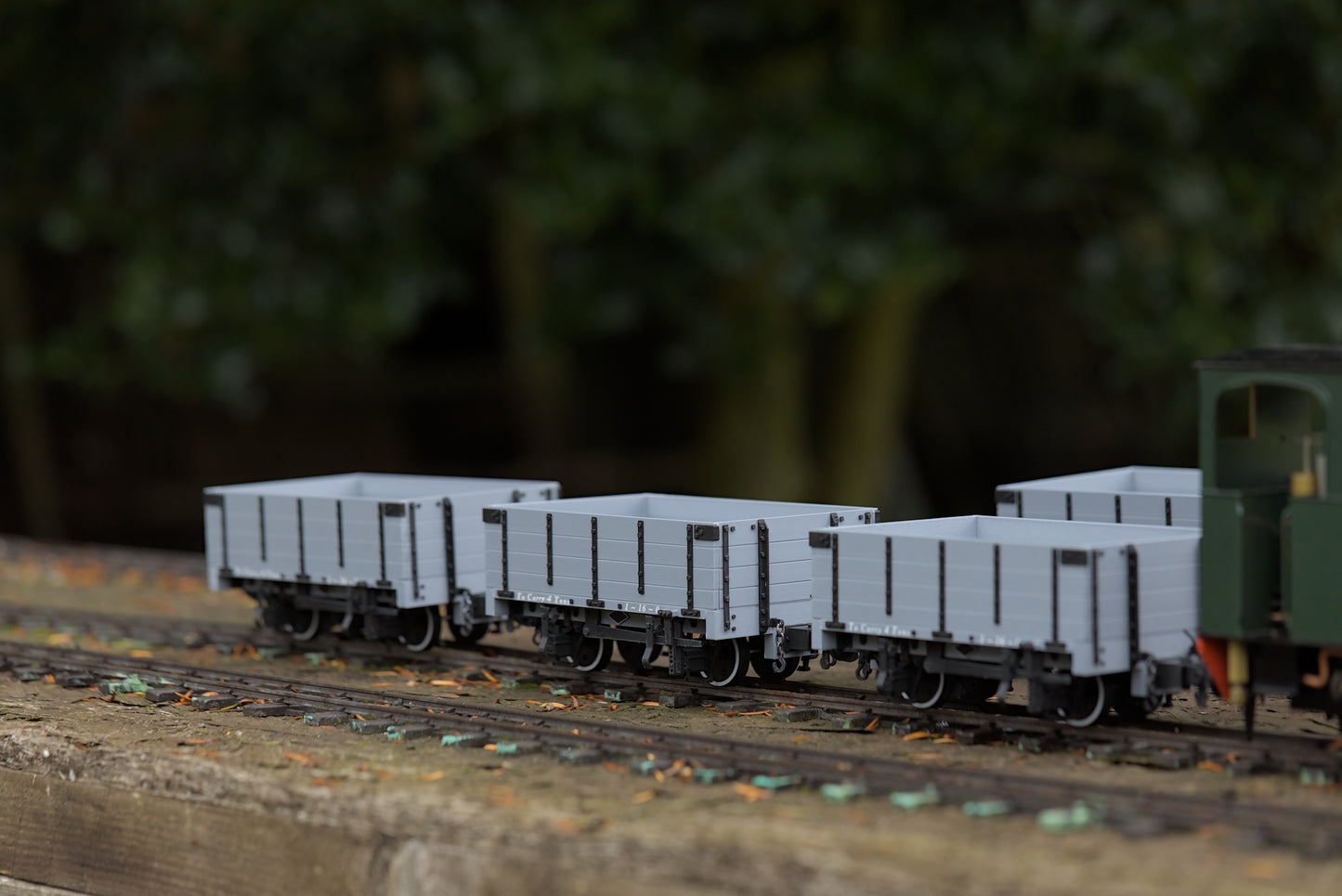

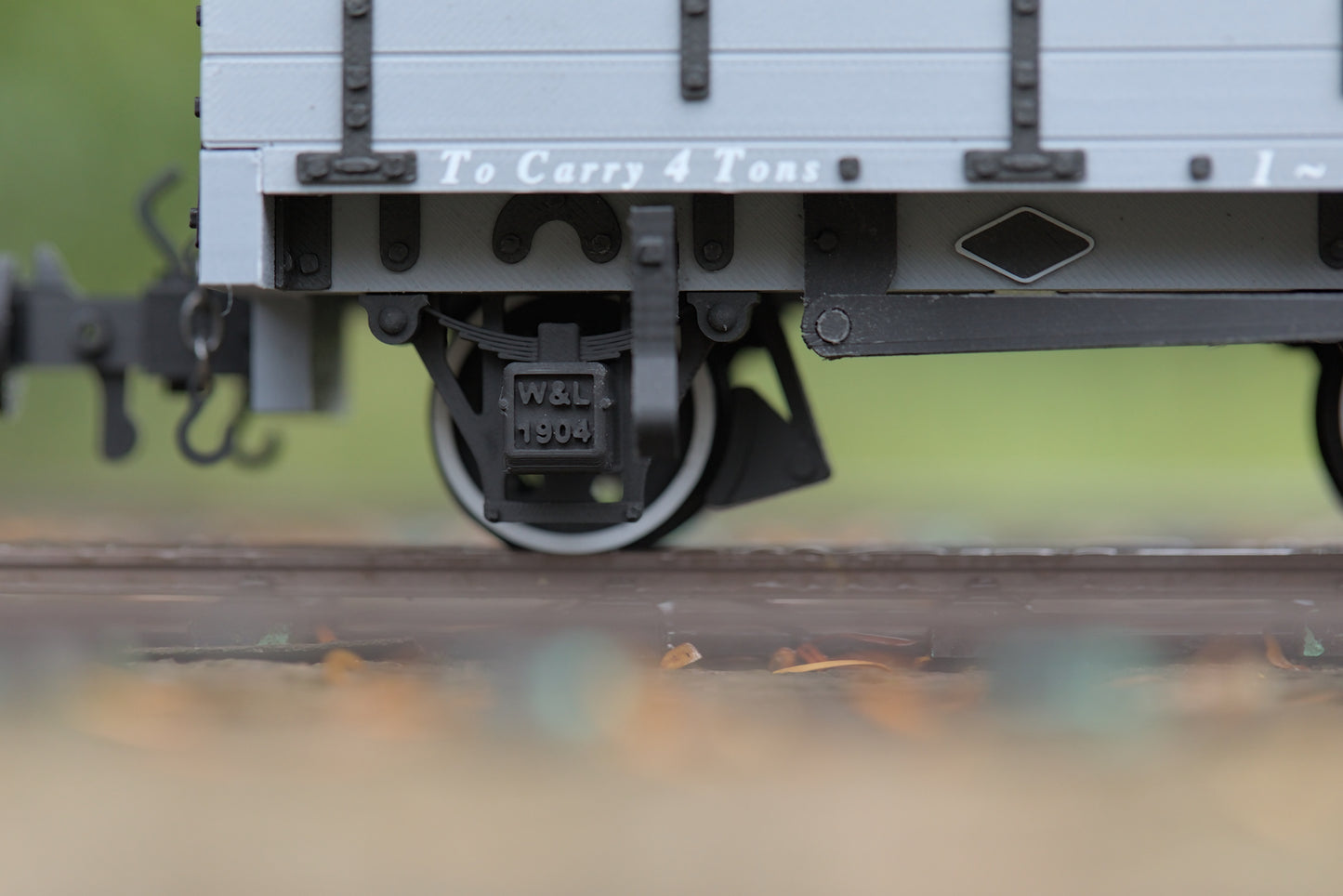

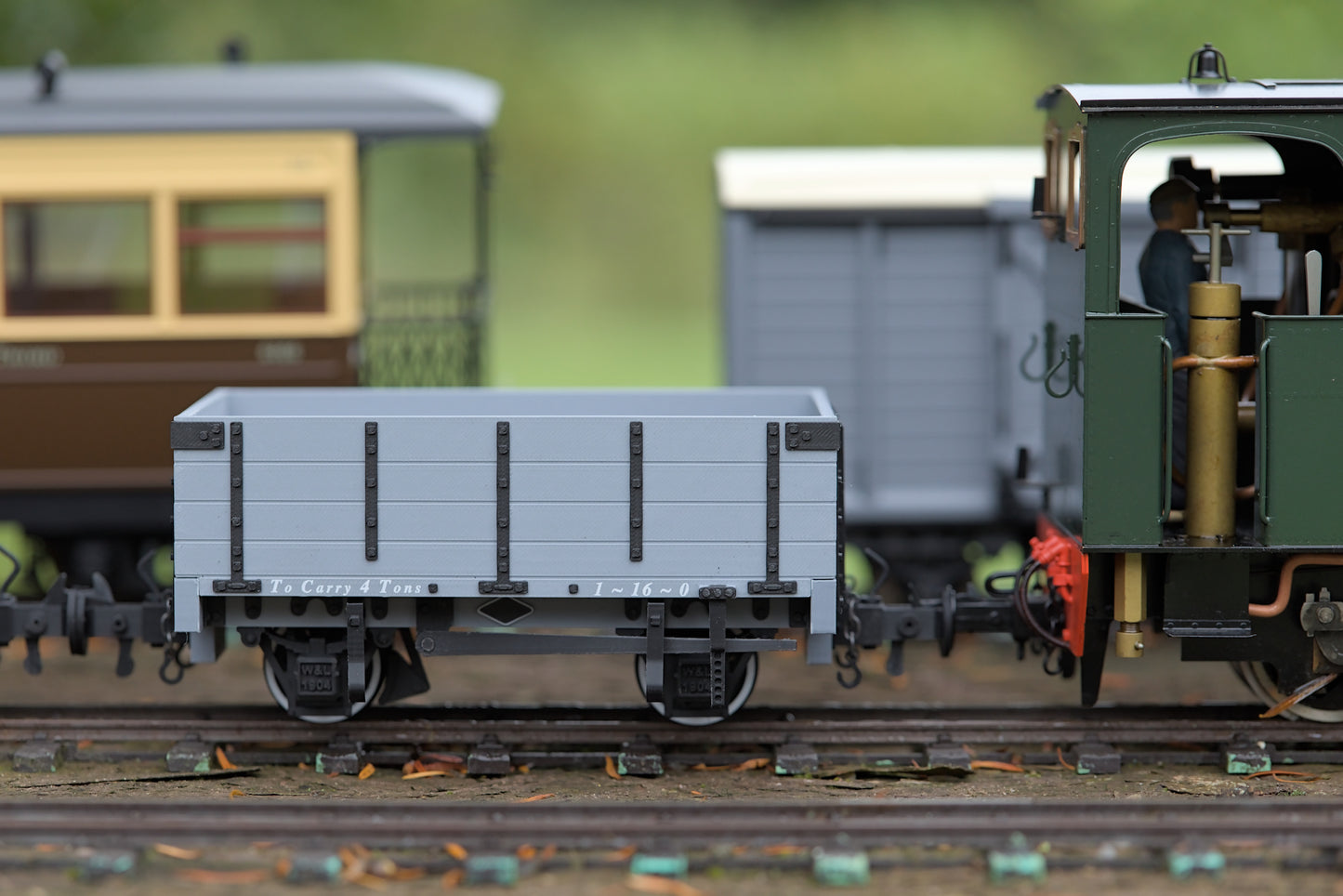

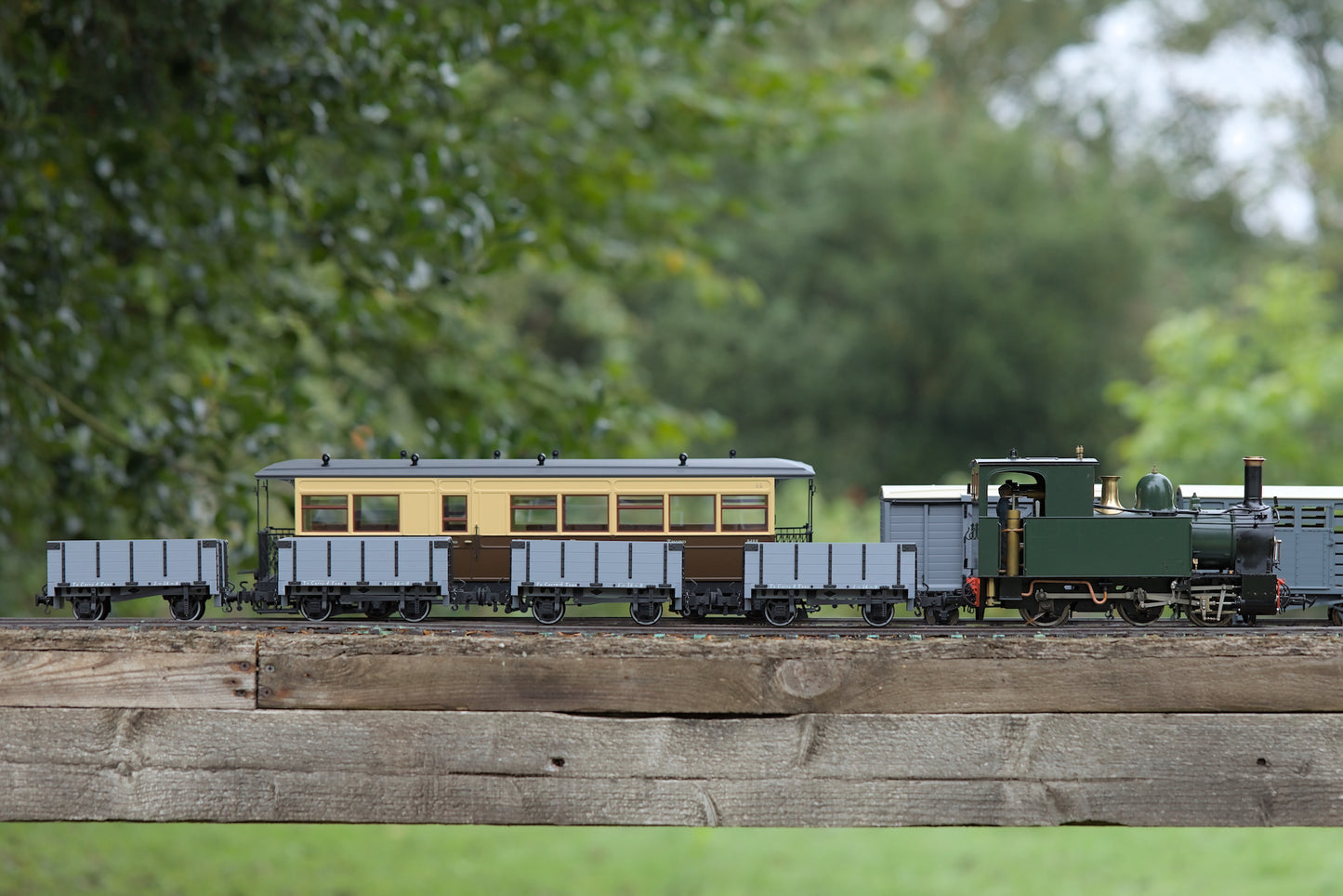

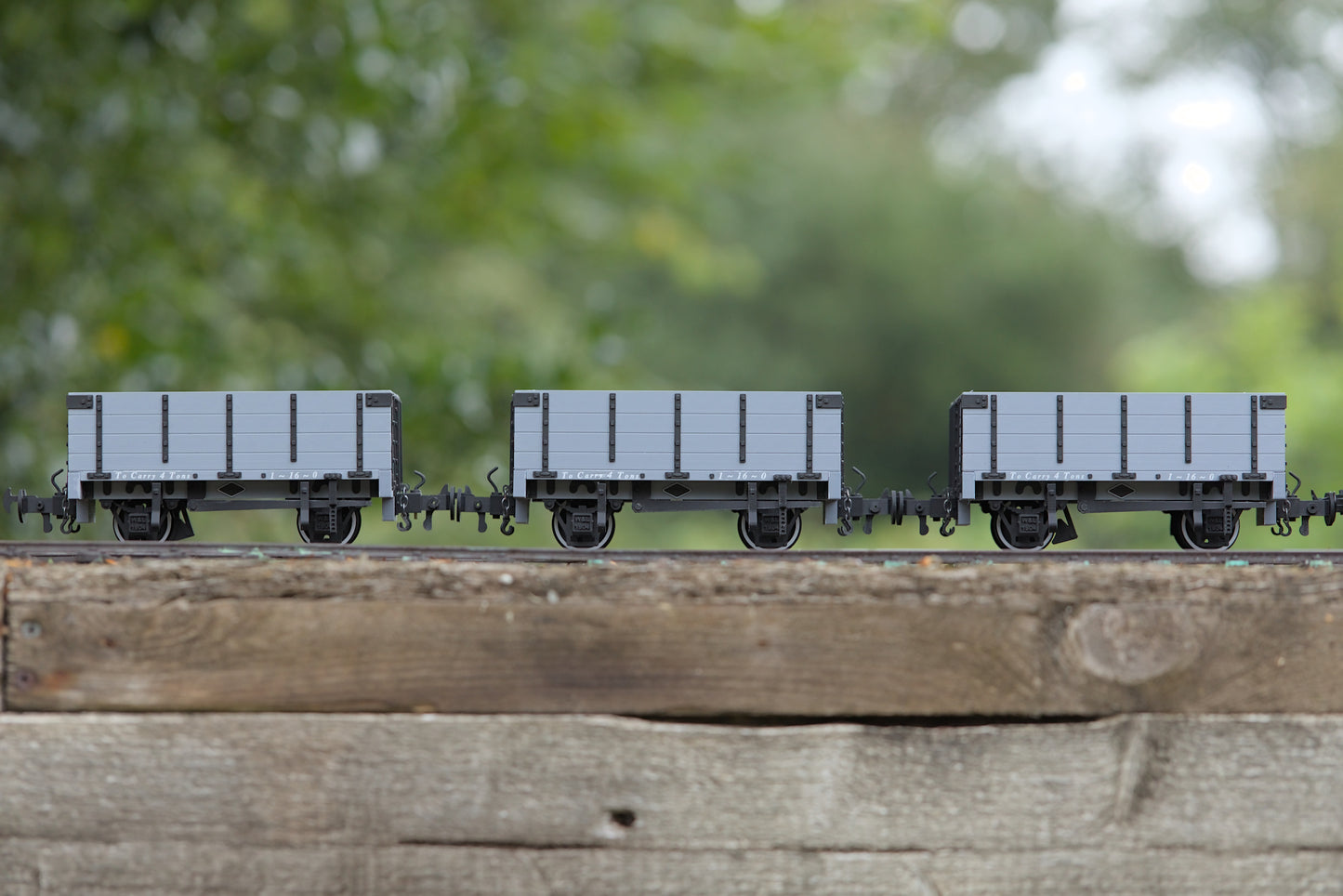

A delightful narrow gauge wagon in 16mm scale. Insulated wheels adjustable between 32 and 45mm gauge. Manufactured by Pickerings for the Welshpool and Llanfair light railway, this superb kit is everything you need to build up your narrow gauge, garden railway rolling stock collection.

Simple to build, extremely detailed, and no painting required!

3D printed in multiple colours to a very high standard, with an exceptionally high level of detail, this open wagon kit is a joy to build and even more fun to run.

Complete with extremely detailed instructions.

Made by us, in the UK 🇬🇧

Online only instructions (for now)

Specifications

• Scale: 16mm to 1 foot (1:19)

• Length over couplings (choppers): 244mm (9.5 inches)

• Length over couplings (dumb): 204mm (8 inches)

• Width: 105mm (4.125 inches)
• Height: 85mm (3.3 inches)
• Min Radius: 600mm (2 feet)
• Weight: approx. 280g

What's in the Kit?

Everything required to make one wagon, including:

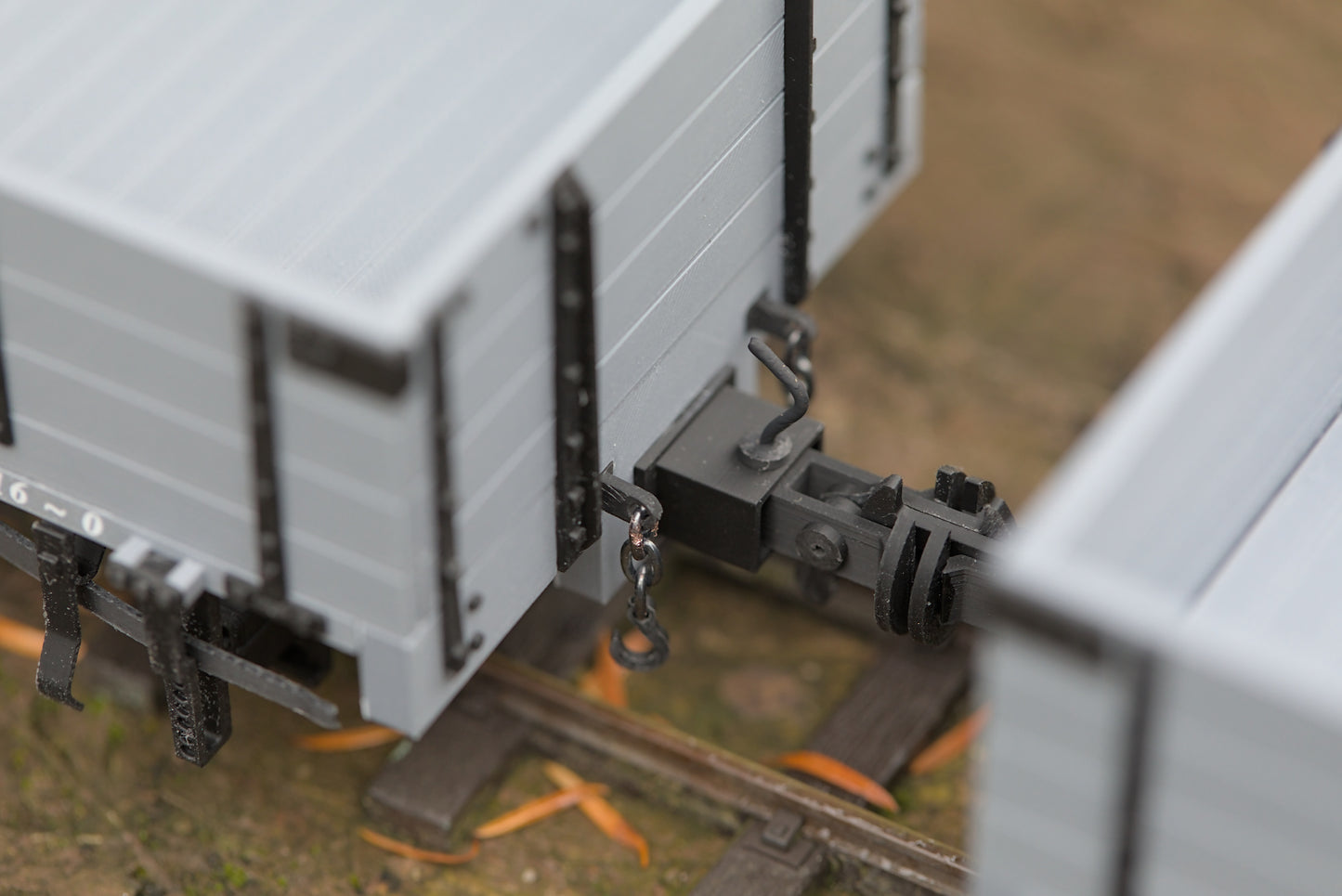

• Chopper couplings - one pair
• Dumb buffers - one pair
• Coupling hooks - one pair, brass
• Coupling chain - one, three link, steel
• Transfers (+ spares!)
• Safety chains
• Wheels and axles
• Brake gear

• 70 detailed parts

Materials

• Wheels: plastic
• Axles: stainless steel
• Bushes: brass
• Coupling hook: brass
• Coupling chain: steel
• Safety chain: steel
• Chassis: plastic
• Body: plastic
• Detail: plastic

Assembly

Assembly can be done in less than one hour. No painting is required, and it's not necessary to stick on lots of tiny little iron work or makers plates etc. For example, the solebars come with nine detailed parts already fitted, the sides come with the all iron work attached and pre-coloured.

Download the detailed assembly instructions here.

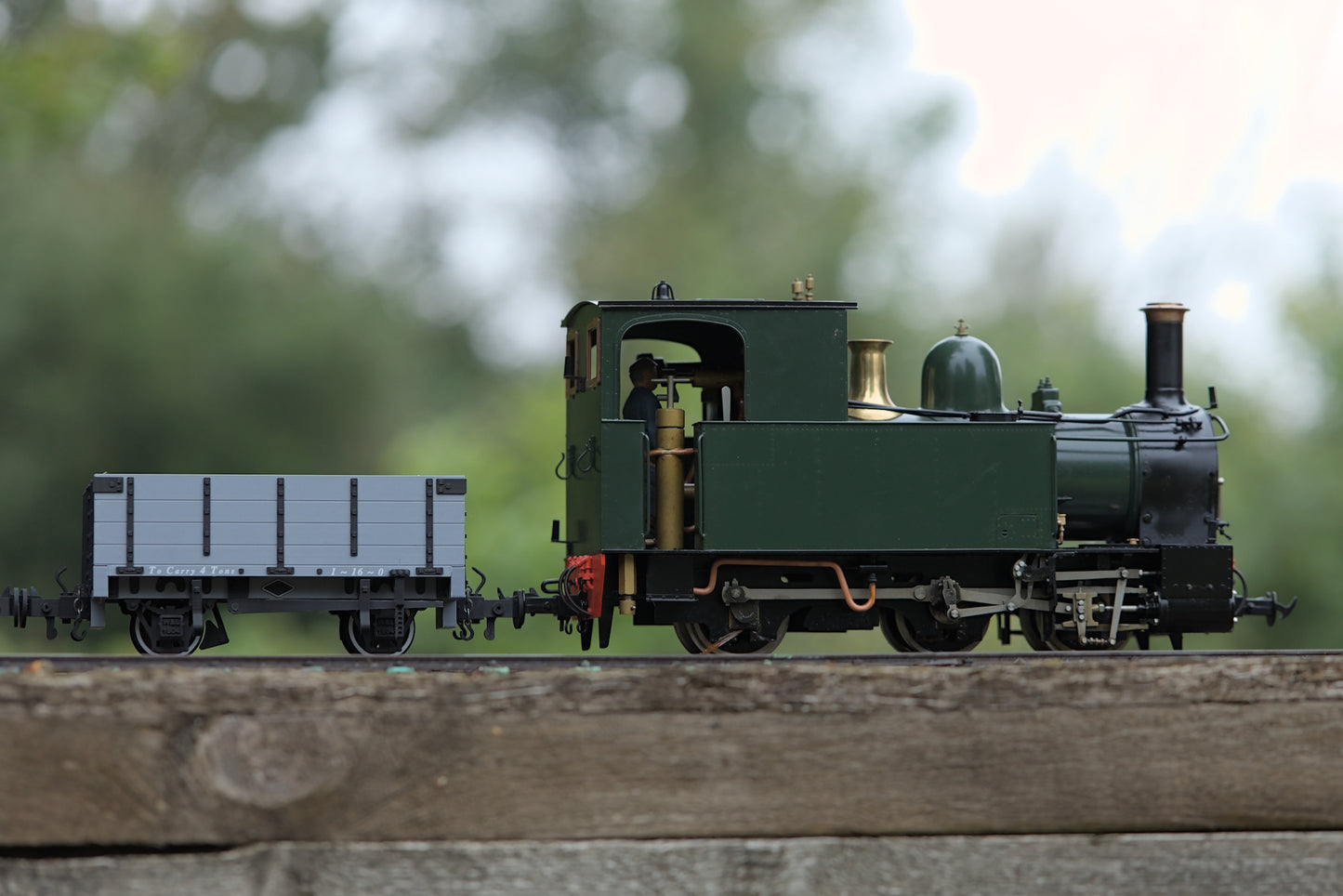

*Engine not included
